TL-6800 Auto Lensmeter

Categories:

TL-6800 Auto Lensmeter

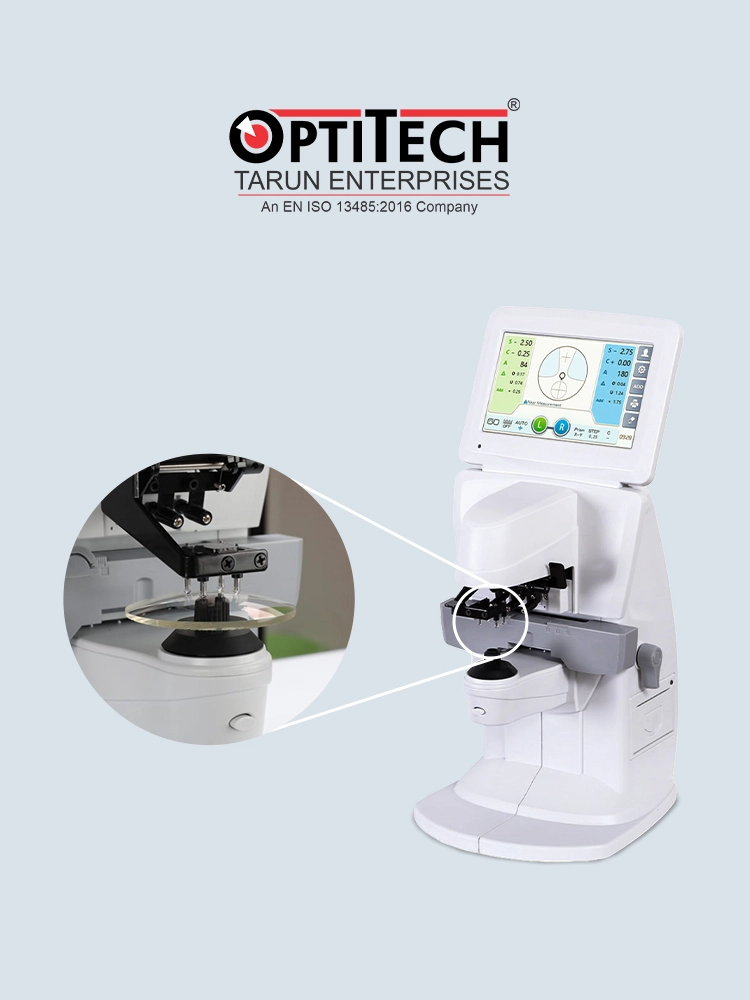

The TL-6800 Auto Lensmeter is an advanced automatic lens measuring device designed for fast, accurate, and reliable optical measurements using Hartmann sensor technology.
Specification:
  • Sphere: −25.00 to +25.00 D
  • Cylinder: 0 to ±10.00 D
  • Axis: 0° to 180°
  • ADD: 0 to +10.00 D
  • Prism: 0 to 20Δ
  • Measurable Lens Diameter: Ø10 to 119 mm
  • Measurement Mode: Cylinder (−, MIX, +), Prism (X-Y, P-B)
  • PD Measurement: 42.0 to 82.0 mm (Single vision & Progressive lenses)
  • Wavelength / Measuring Point: 525 nm (green) / 145 points within nosepiece
  • Display: 7.0-inch touch screen (800 × 480)
  • Printer: Built-in thermal printe
  • Interface: RS232 / LAN / US
  • Dimensions: 203 (W) × 233 (D) × 471 (H) mm
  • Weight: 4.5 kg
  • Power Supply: AC 100–240 V, 50/60 Hz
Specification:
  • Sphere: −25.00 to +25.00 D
  • Cylinder: 0 to ±10.00 D
  • Axis: 0° to 180°
  • ADD: 0 to +10.00 D
  • Prism: 0 to 20Δ
  • Measurable Lens Diameter: Ø10 to 119 mm
  • Measurement Mode: Cylinder (−, MIX, +), Prism (X-Y, P-B)
  • PD Measurement: 42.0 to 82.0 mm (Single vision & Progressive lenses)
  • Wavelength / Measuring Point: 525 nm (green) / 145 points within nosepiece
  • Display: 7.0-inch touch screen (800 × 480)
  • Printer: Built-in thermal printe
  • Interface: RS232 / LAN / US
  • Dimensions: 203 (W) × 233 (D) × 471 (H) mm
  • Weight: 4.5 kg
  • Power Supply: AC 100–240 V, 50/60 Hz
the video will be uploaded soon by Optitecheyecare
Tags:

Description:

The TL-6800 Auto Lensmeter is a high-performance optical instrument developed for precise lens measurement in optical stores and eye clinics. It is equipped with a Hartmann sensor featuring 145 measurement points, ensuring highly accurate and consistent results.
