iS7 Slitlamp Digital Biomicroscope

Categories:

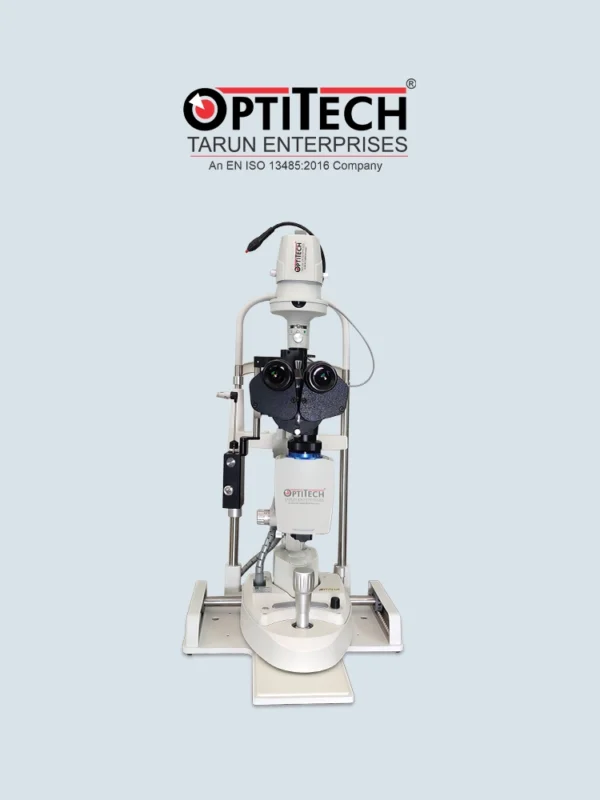

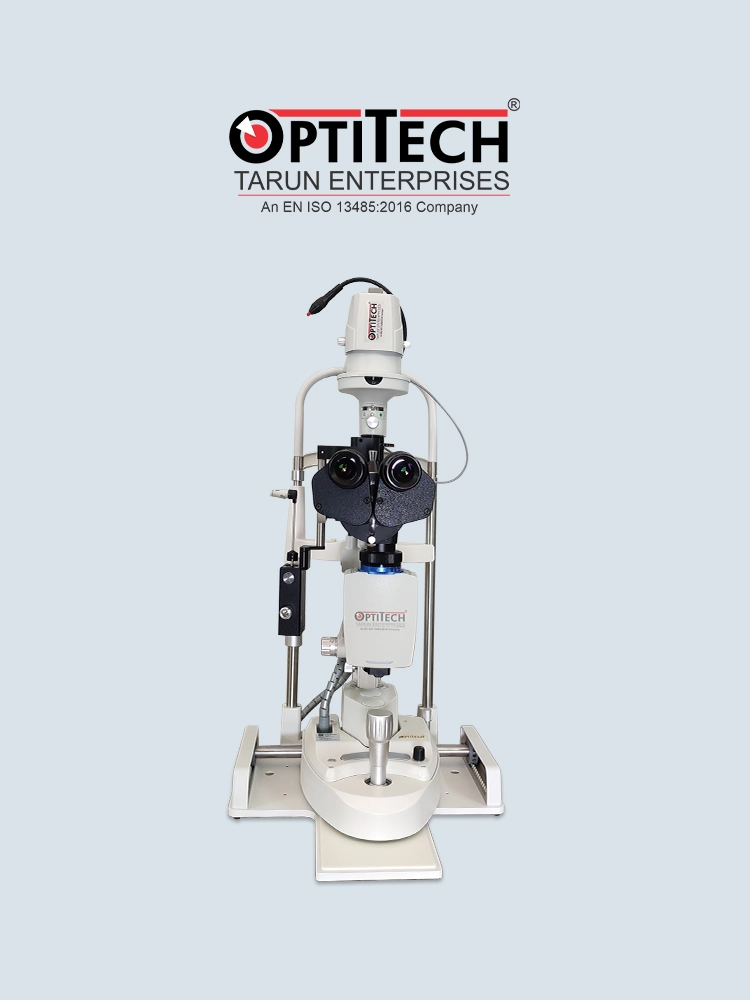

iS7 Slitlamp Digital Biomicroscope

The iS7 Slitlamp Digital Biomicroscope is a high-precision ophthalmic microscope featuring a Galilean optical system with 5-step revolving drum magnification (6.3x to 40x).
Specification :
  • Microscope Type Galilean Type
  • Magnification Change 5-Step Revolving Drum
  • Total Magnification 6.3x, 10x, 16x, 25x, 40x
the video will be uploaded soon
Tags:
The iS7 Slitlamp Digital Biomicroscope is a cutting-edge ophthalmic diagnostic tool, designed for high-resolution eye examinations. It features an advanced Galilean optical system that provides sharp and detailed imaging with a wide magnification range (6.3x, 10x, 16x, 25x, 40x).   Its built-in yellow filter enhances contrast and clarity, making it ideal for corneal and retinal examinations, dry eye assessments, and Meibomian gland imaging. With precision optics and 12.5x eyepieces, this slit lamp microscope ensures accurate diagnosis in ophthalmology clinics, hospitals, and research laboratories.   Engineered for ease of use, the iS7 model includes a 10° eyepiece angle for comfortable viewing, a wide field of view, and a user-friendly interface, making it perfect for ophthalmologists and optometrists.

Feature                     Details

Microscope Type Galilean Type

Magnification Change 5-Step Revolving Drum

Total Magnification 6.3x, 10x, 16x, 25x, 40x

Optical Resolution 2700-N lp/mm (200 lp/mm)

Eyepieces 12.5x

Angle Between Eyepieces 10°

Pupillary Adjustment 52 mm – 80 mm

Diopter Adjustment -8 D to +8 D

Field of View Ø36.2 mm, Ø22.3 mm, Ø14 mm, Ø8.9 mm, Ø5.7 mm

  • Adjust the eyepieces to the desired pupillary distance for clear vision.
  • Select the magnification level (6.3x – 40x) using the revolving drum.
  • Use the built-in yellow filter to enhance image contrast for corneal and epithelial examinations.
  • Position the patient and align the slit lamp for accurate focus.
  • Adjust the illumination and diopter settings for optimal clarity.
